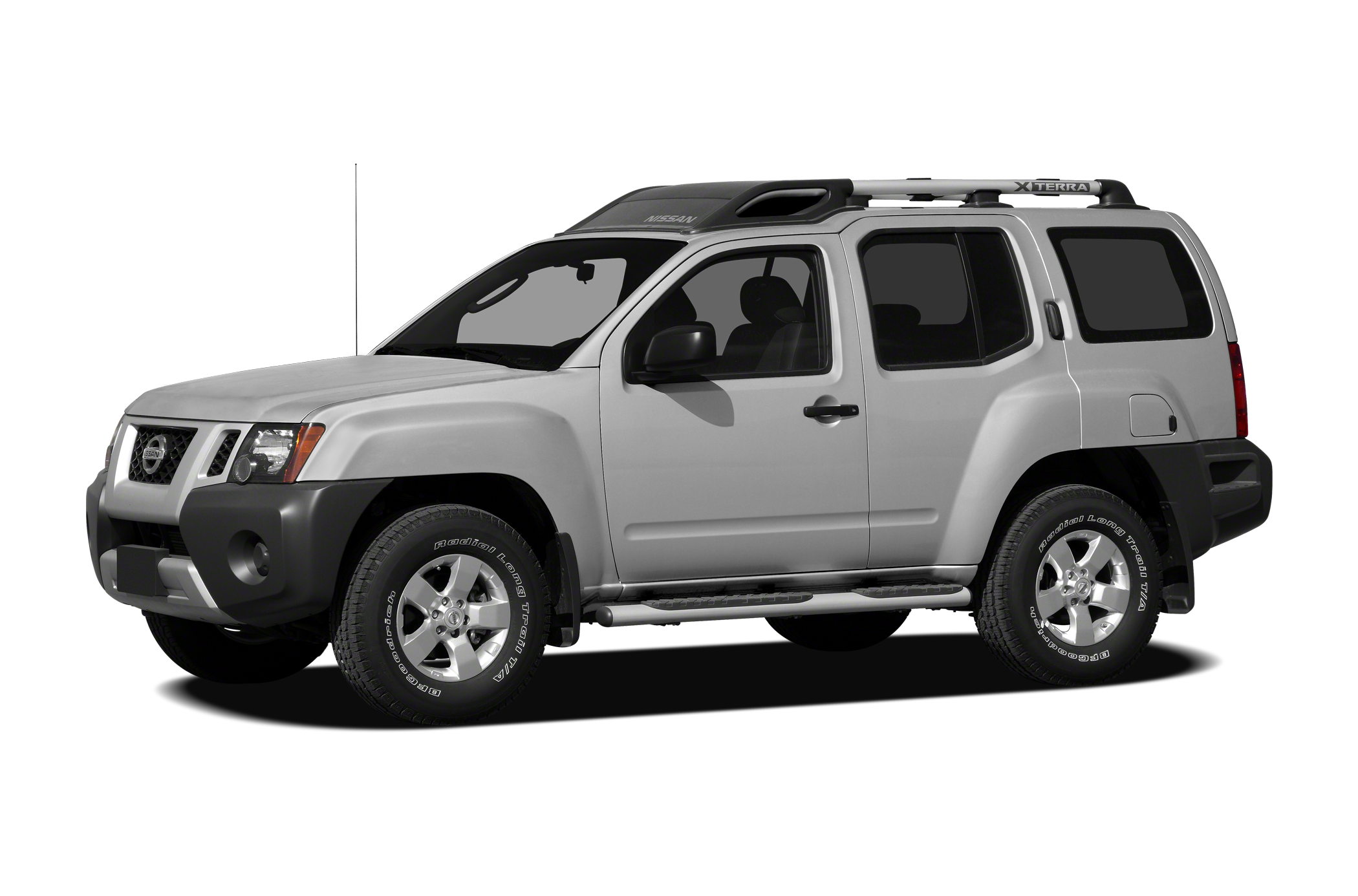

2012 Nissan Xterra X specs & colors
Sport Utility
MSRP
- 2WD 4dr Auto X
- $25,480
- 2WD 4dr Auto S
- $27,470
- 4WD 4dr Auto X
- $27,530
- 4WD 4dr Manual S
- $28,470
- 4WD 4dr Auto S
- $29,520
- 4WD 4dr Manual Pro-4X
- $30,640
- 4WD 4dr Auto Pro-4X
- $31,690
Key specs
Color options
Interior
Oxford White / Lt Graphite
Packages
Specifications
Highlights
|
Gas V6
Engine Type
|
|
16 City / 22 Hwy
MPG
|
|
261 hp
Horsepower
|
|
5
Seating Capacity
|
Brakes
|
Pwr
Brake Type
|
|
N/A
Brake ABS System (Second Line)
|
|
4-Wheel
Brake ABS System
|
|
11.7 x 1.1 in
Front Brake Rotor Diam x Thickness
|
|
Yes
Disc - Front (Yes or )
|
|
Yes
Disc - Rear (Yes or )
|
|
Not Available
Drum - Rear (Yes or )
|
|
11.3 x 0.7 in
Rear Brake Rotor Diam x Thickness
|
Electrical
|
110
Maximum Alternator Capacity (amps)
|
|
550
Cold Cranking Amps @ 0° F (Primary)
|
Engine
|
281 @ 4000
SAE Net Torque @ RPM
|
|
Gas V6
Engine Type
|
|
261 @ 5600
SAE Net Horsepower @ RPM
|
|
4.0L/241
Displacement
|
|
A/T
5-Speed A/T Transmission Options
|
|
16 City / 22 Hwy
MPG
|
|
10.0 qts
Total Cooling System Capacity
|
Measurements
|
58 in
Front Shoulder Room
|
|
37 in
Cargo Area Length @ Floor to Seat 2
|
|
46 in
Second Hip Room
|
|
5
Passenger Capacity
|
|
58 in
Second Shoulder Room
|
|
Not Available in
Cargo Area Length @ Floor to Seat 3
|
|
56 in
Front Hip Room
|
|
N/A
Rear Door Opening Width
|
|
73 in
Width, Max w/o mirrors
|
|
62 in
Track Width, Front
|
|
179 in
Length, Overall
|
|
8 in
Min Ground Clearance
|
|
75 in
Height, Overall
|
|
36 in
Cargo Box (Area) Height
|
|
40 in
Front Head Room
|
|
106 in
Wheelbase
|
|
N/A
Cargo Box Width @ Wheelhousings
|
|
32 in
Liftover Height
|
|
62 in
Track Width, Rear
|
|
Not Available ft³
Cargo Volume to Seat 3
|
|
N/A
Cargo Area Length @ Floor to Seat 1
|
|
99 ft³
Passenger Volume
|
|
36 ft³
Cargo Volume to Seat 2
|
|
34 in
Second Leg Room
|
|
42 in
Front Leg Room
|
|
66 ft³
Cargo Volume to Seat 1
|
|
39 in
Second Head Room
|
|
N/A
Rear Door Opening Height
|
|
43 in
Cargo Area Width @ Beltline
|
Steering
|
4
Lock to Lock Turns (Steering)
|
|
20
Steering Ratio (:1), Overall
|
|
38 ft
Turning Diameter - Curb to Curb
|
|
N/A
Turning Diameter - Wall to Wall
|
|
Pwr rack & pinion
Steering Type
|
Suspension
|
Double wishbone
Suspension Type - Front
|
|
Solid Axle
Suspension Type - Rear (Cont.)
|
|
Multi-leaf
Suspension Type - Rear
|
|
Not Available
Suspension Type - Front (Cont.)
|
Tires & Wheels
|
Steel
Spare Wheel Material
|
|
P265/70R16
Rear Tire Size
|
|
P265/70R16
Spare Tire Size
|
|
16 x 7.0 in
Spare Wheel Size
|
|
P265/70R16
Front Tire Size
|
|
16 x 7.0 in
Rear Wheel Size
|
|
Steel
Rear Wheel Material
|
|
16 x 7.0 in
Front Wheel Size
|
|
Steel
Front Wheel Material
|
Weight & Capacity
|
5,000 lbs
Wt Distributing Hitch - Max Trailer Wt.
|
|
N/A
Curb Weight - Rear
|
|
N/A
Curb Weight - Front
|
|
4,143 lbs
Base Curb Weight
|
|
N/A
Aux Fuel Tank Capacity, Approx
|
|
N/A
Curb Weight
|
|
21 gal
Fuel Tank Capacity, Approx
|
|
N/A
Maximum Trailering Capacity
|
|
500 lbs
Dead Weight Hitch - Max Tongue Wt.
|
|
750 lbs
Wt Distributing Hitch - Max Tongue Wt.
|
|
0 lbs
Total Option Weight
|
|
N/A
Maximum Payload Capacity
|
|
5,000 lbs
Dead Weight Hitch - Max Trailer Wt.
|
