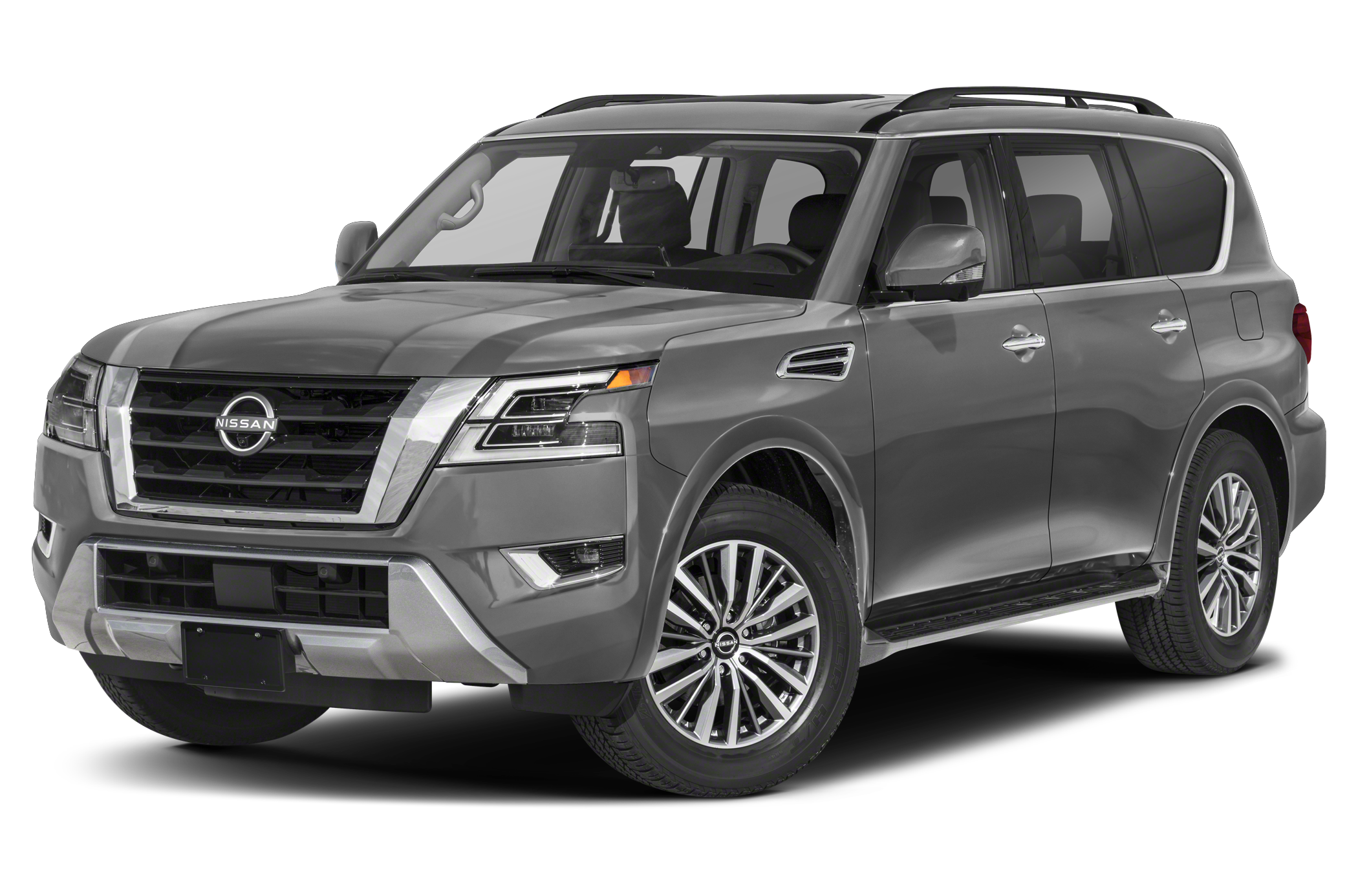

2023 Nissan Armada S specs & colors
Sport Utility
MSRP
- 4x2 S
- $50,700
- 4x4 S
- $53,700
- 4x2 SV
- $55,300
- 4x4 SV
- $58,300
- 4x2 SL
- $59,120
- 4x4 SL
- $62,120
- 4x2 Platinum
- $67,370
- 4x4 Platinum
- $70,370
Key specs
Color options
Interior
Medium Grey
Packages
Specifications
Highlights
|
Regular Unleaded V-8
Engine Type
|
|
14 City / 19 Hwy
MPG
|
|
400 hp
Horsepower
|
|
8
Seating Capacity
|
Brakes
|
4-Wheel Disc
Brake Type
|
|
4-Wheel
Brake ABS System
|
|
4-Wheel
Brake ABS System (Second Line)
|
|
Yes
Disc - Front (Yes or )
|
|
Yes
Disc - Rear (Yes or )
|
|
14 in
Front Brake Rotor Diam x Thickness
|
|
14 in
Rear Brake Rotor Diam x Thickness
|
|
N/A
Drum - Rear (Yes or )
|
Electrical
|
650
Cold Cranking Amps @ 0° F (Primary)
|
|
150
Maximum Alternator Capacity (amps)
|
Engine
|
Regular Unleaded V-8
Engine Type
|
|
5.6 L/339
Displacement
|
|
400 @ 5800
SAE Net Horsepower @ RPM
|
|
413 @ 4000
SAE Net Torque @ RPM
|
|
7-Speed A/T
A/T Transmission w/Dual Shift Mode Transmission Options
|
|
14 City / 19 Hwy
MPG
|
|
N/A
Total Cooling System Capacity
|
Entertainment
|
Standard
Bluetooth®
|
Measurements
|
8
Passenger Capacity
|
|
41 in
Front Head Room
|
|
42 in
Front Leg Room
|
|
64 in
Front Shoulder Room
|
|
59 in
Front Hip Room
|
|
40 in
Second Head Room
|
|
41 in
Second Leg Room
|
|
63 in
Second Shoulder Room
|
|
58 in
Second Hip Room
|
|
36 in
Third Head Room
|
|
28 in
Third Leg Room
|
|
61 in
Third Shoulder Room
|
|
49 in
Third Hip Room
|
|
121 in
Wheelbase
|
|
N/A
Length, Overall w/rear bumper
|
|
209 in
Length, Overall
|
|
80 in
Width, Max w/o mirrors
|
|
76 in
Height, Overall
|
|
68 in
Track Width, Front
|
|
68 in
Track Width, Rear
|
|
N/A
Overhang, Front
|
|
N/A
Overhang, Rear w/o bumper
|
|
N/A
Cab to End of Frame
|
|
N/A
Ground to Top of Load Floor
|
|
N/A
Ground Clearance, Front
|
|
N/A
Ground Clearance, Rear
|
|
9 in
Min Ground Clearance
|
|
N/A
Rear Door Opening Height
|
|
N/A
Rear Door Opening Width
|
|
86 in
Cargo Area Length @ Floor to Seat 1
|
|
49 in
Cargo Area Length @ Floor to Seat 2
|
|
20 in
Cargo Area Length @ Floor to Seat 3
|
|
N/A
Cargo Box Width @ Top, Rear
|
|
63 in
Cargo Area Width @ Beltline
|
|
N/A
Cargo Box Width @ Floor
|
|
49 in
Cargo Box Width @ Wheelhousings
|
|
37 in
Cargo Box (Area) Height
|
|
35 in
Liftover Height
|
|
N/A
Tailgate Width
|
|
N/A
Cargo Volume
|
|
95 ft³
Cargo Volume to Seat 1
|
|
50 ft³
Cargo Volume to Seat 2
|
|
17 ft³
Cargo Volume to Seat 3
|
|
N/A
Ext'd Cab Cargo Volume
|
Safety
|
Standard
Stability Control
|
|
Standard
Backup Camera
|
|
Standard
Blind Spot Monitor
|
|
Standard
Lane Departure Warning
|
Steering
|
Rack-Pinion
Steering Type
|
|
N/A
Steering Ratio (:1), Overall
|
|
41 ft
Turning Diameter - Curb to Curb
|
|
N/A
Turning Diameter - Wall to Wall
|
Suspension
|
Double Wishbone
Suspension Type - Front
|
|
Double Wishbone
Suspension Type - Rear
|
|
Independent
Axle Type - Front
|
|
Independent
Axle Type - Rear
|
Tires & Wheels
|
P265/70HR18
Front Tire Size
|
|
P265/70HR18
Rear Tire Size
|
|
Full-Size
Spare Tire Size
|
|
18 X 8 in
Front Wheel Size
|
|
18 X 8 in
Rear Wheel Size
|
|
Full-Size in
Spare Wheel Size
|
|
Aluminum
Front Wheel Material
|
|
Aluminum
Rear Wheel Material
|
|
Aluminum
Spare Wheel Material
|
Weight & Capacity
|
5,651 lbs
Base Curb Weight
|
|
2,899 lbs
Curb Weight - Front
|
|
2,752 lbs
Curb Weight - Rear
|
|
0 lbs
Option Weight - Front
|
|
0 lbs
Option Weight - Rear
|
|
5,651 lbs
As Spec'd Curb Weight
|
|
1,649 lbs
As Spec'd Payload
|
|
1,649 lbs
Maximum Payload Capacity
|
|
14,510 lbs
Gross Combined Wt Rating
|
|
5,000 lbs
Dead Weight Hitch - Max Trailer Wt.
|
|
500 lbs
Dead Weight Hitch - Max Tongue Wt.
|
|
8,500 lbs
Wt Distributing Hitch - Max Trailer Wt.
|
|
850 lbs
Wt Distributing Hitch - Max Tongue Wt.
|
|
N/A
Fifth Wheel Hitch - Max Trailer Wt.
|
|
N/A
Fifth Wheel Hitch - Max Tongue Wt.
|
|
8,500 lbs
Maximum Trailering Capacity
|
|
26 gal
Fuel Tank Capacity, Approx
|
|
N/A
Aux Fuel Tank Capacity, Approx
|
|
7,959 lbs
Gross Axle Weight Rating
|
|
5,651 lbs
Curb Weight
|
|
0 lbs
Total Option Weight
|
|
7,300 lbs
Gross Vehicle Weight Rating
|
