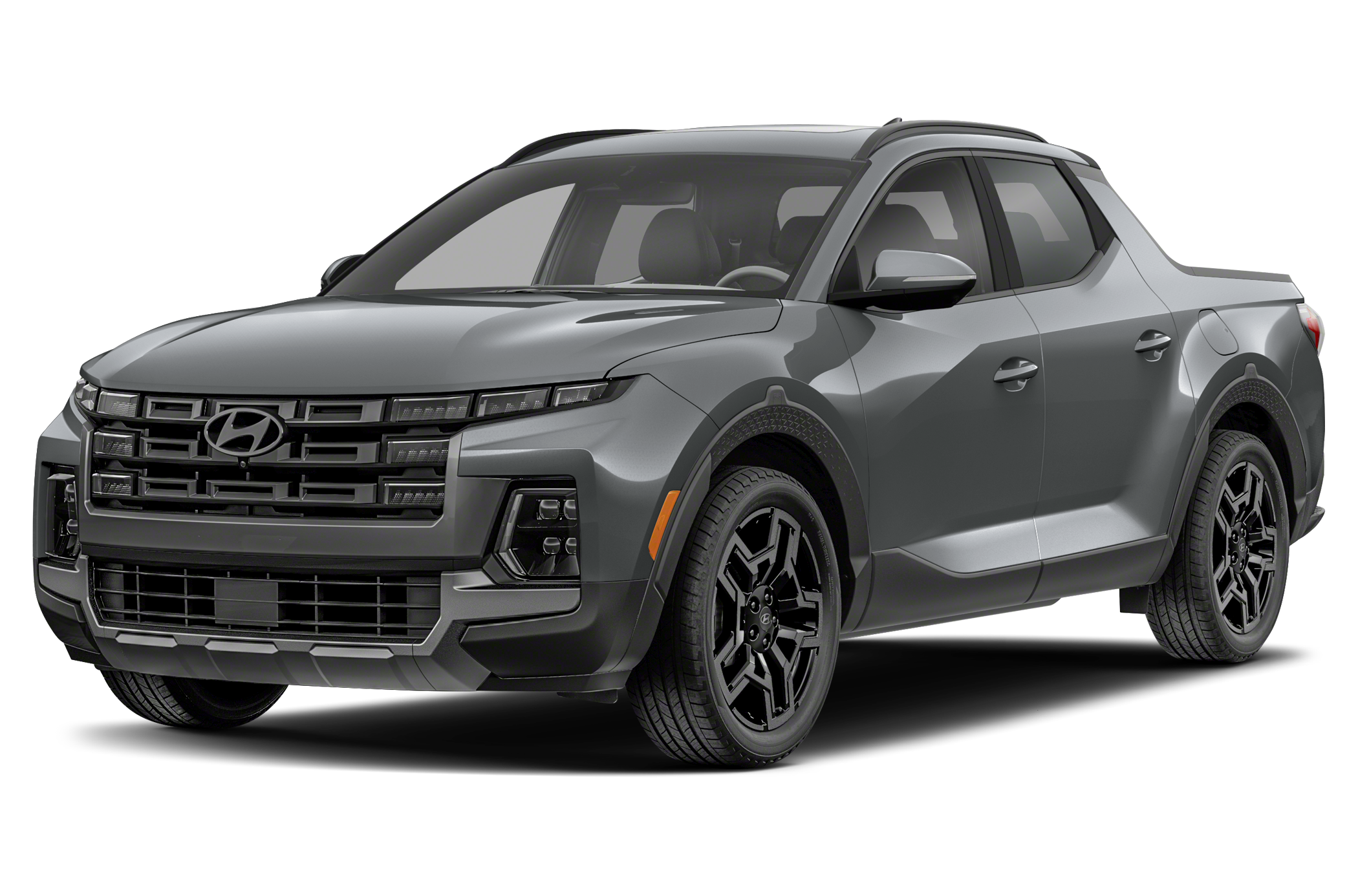

2025 Hyundai SANTA CRUZ SE specs & colors
Crew Cab Pickup
MSRP
- SE FWD
- $28,750
- SE AWD
- $30,250
- SEL FWD
- $30,450
- SEL AWD
- $31,950
- SEL Activity FWD
- $33,450
- SEL Activity AWD
- $34,950
- XRT AWD
- $40,250
- Limited AWD
- $42,750
Key specs
Color options
Interior
Melange / Lt Gray
Black
Packages
$250
Starting MSRP
- Bed Mat
- Envelope Cargo Net
- First Aid Kit
$0
Starting MSRP
- standard equipment
$535
Starting MSRP
- Tow Hitch
- Ball Mount Kit
$365
Starting MSRP
- All Season Fitted Liners
- Mud Guards
Specifications
Highlights
|
Regular Unleaded I-4
Engine Type
|
|
22 City / 30 Hwy
MPG
|
|
191 hp
Horsepower
|
|
5
Seating Capacity
|
Brakes
|
4-Wheel Disc
Brake Type
|
|
4-Wheel
Brake ABS System
|
|
4-Wheel
Brake ABS System (Second Line)
|
|
Yes
Disc - Front (Yes or )
|
|
Yes
Disc - Rear (Yes or )
|
|
13 in
Front Brake Rotor Diam x Thickness
|
|
13 in
Rear Brake Rotor Diam x Thickness
|
|
N/A
Drum - Rear (Yes or )
|
Electrical
|
N/A
Cold Cranking Amps @ 0° F (Primary)
|
|
150
Maximum Alternator Capacity (amps)
|
Engine
|
Regular Unleaded I-4
Engine Type
|
|
2.5 L/152
Displacement
|
|
191 @ 6100
SAE Net Horsepower @ RPM
|
|
181 @ 4000
SAE Net Torque @ RPM
|
|
8-Speed A/T
A/T Transmission w/Dual Shift Mode Transmission Options
|
|
22 City / 30 Hwy
MPG
|
|
N/A
Total Cooling System Capacity
|
Entertainment
|
Standard
Bluetooth®
|
Measurements
|
5
Passenger Capacity
|
|
40 in
Front Head Room
|
|
41 in
Front Leg Room
|
|
58 in
Front Shoulder Room
|
|
55 in
Front Hip Room
|
|
40 in
Second Head Room
|
|
37 in
Second Leg Room
|
|
56 in
Second Shoulder Room
|
|
54 in
Second Hip Room
|
|
118 in
Wheelbase
|
|
N/A
Length, Overall w/o rear bumper
|
|
N/A
Length, Overall w/rear bumper
|
|
196 in
Length, Overall
|
|
75 in
Width, Max w/o mirrors
|
|
67 in
Height, Overall
|
|
N/A
Overhang, Front
|
|
N/A
Overhang, Rear w/o bumper
|
|
N/A
Cab to End of Frame
|
|
32 in
Ground to Top of Load Floor
|
|
9 in
Ground Clearance, Front
|
|
9 in
Ground Clearance, Rear
|
|
48 in
Cargo Box Length @ Floor
|
|
54 in
Cargo Box Width @ Top, Rear
|
|
54 in
Cargo Box Width @ Floor
|
|
43 in
Cargo Box Width @ Wheelhousings
|
|
19 in
Cargo Box (Area) Height
|
|
N/A
Tailgate Width
|
|
27 ft³
Cargo Volume
|
|
N/A
Ext'd Cab Cargo Volume
|
Safety
|
Standard
Rear Cross Traffic Alert
|
|
Standard
Blind Spot Monitor
|
|
Standard
Lane Departure Warning
|
|
Standard
Stability Control
|
|
Standard
Backup Camera
|
Steering
|
Rack-Pinion
Steering Type
|
|
N/A
Steering Ratio (:1), Overall
|
|
40 ft
Turning Diameter - Curb to Curb
|
|
N/A
Turning Diameter - Wall to Wall
|
Suspension
|
Strut
Suspension Type - Front
|
|
Multi-Link
Suspension Type - Rear
|
|
Independent
Axle Type - Front
|
|
Independent
Axle Type - Rear
|
Tires & Wheels
|
P245/60HR18
Front Tire Size
|
|
P245/60HR18
Rear Tire Size
|
|
Compact
Spare Tire Size
|
|
18 X 7.5 in
Front Wheel Size
|
|
18 X 7.5 in
Rear Wheel Size
|
|
Compact in
Spare Wheel Size
|
|
Aluminum
Front Wheel Material
|
|
Aluminum
Rear Wheel Material
|
|
Steel
Spare Wheel Material
|
Weight & Capacity
|
3,779 lbs
Base Curb Weight
|
|
N/A
Curb Weight - Front
|
|
N/A
Curb Weight - Rear
|
|
0 lbs
Option Weight - Front
|
|
0 lbs
Option Weight - Rear
|
|
N/A
As Spec'd Curb Weight
|
|
N/A
As Spec'd Payload
|
|
N/A
Maximum Payload Capacity
|
|
N/A
Gross Combined Wt Rating
|
|
3,500 lbs
Dead Weight Hitch - Max Trailer Wt.
|
|
350 lbs
Dead Weight Hitch - Max Tongue Wt.
|
|
3,500 lbs
Wt Distributing Hitch - Max Trailer Wt.
|
|
350 lbs
Wt Distributing Hitch - Max Tongue Wt.
|
|
N/A
Fifth Wheel Hitch - Max Trailer Wt.
|
|
N/A
Fifth Wheel Hitch - Max Tongue Wt.
|
|
3,500 lbs
Maximum Trailering Capacity
|
|
18 gal
Fuel Tank Capacity, Approx
|
|
N/A
Aux Fuel Tank Capacity, Approx
|
|
N/A
Gross Axle Weight Rating
|
|
N/A
Curb Weight
|
|
0 lbs
Total Option Weight
|
|
5,522 lbs
Gross Vehicle Weight Rating
|
