2025 Ford F-150 Lightning LARIAT specs & colors
Crew Cab Pickup
MSRP
- Pro 4WD SuperCrew 5.5' Box
- $47,780
- XLT 4WD SuperCrew 5.5' Box
- $62,995
- Flash 4WD SuperCrew 5.5' Box
- $67,995
- LARIAT 4WD SuperCrew 5.5' Box
- $76,995
- Platinum 4WD SuperCrew 5.5' Box
- $84,995
$76,995
Starting MSRP
Current listing price
Current listing price

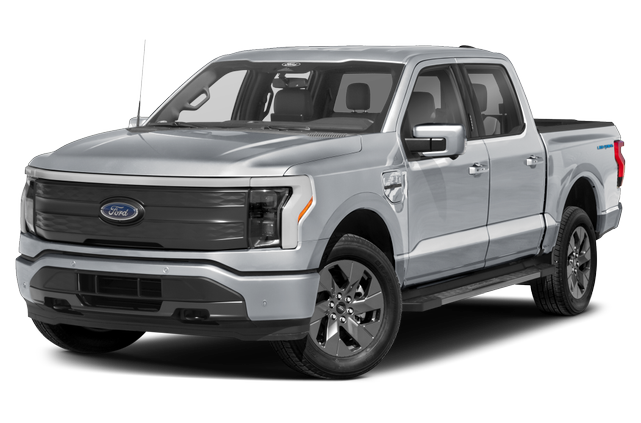

Showing the 2025 Ford F-150 Lightning LARIAT 4WD SuperCrew 5.5' Box
Shop NowKey specs
Color options
Interior
Glacier Tri-Tone
Packages
$0
Starting MSRP
$1,100
Starting MSRP
- increased tow capability
- Max towing capability TBD
- E-Locker
See more detail $1,100
Starting MSRP
- increased tow capability
- Max towing capability TBD
- E-Locker
- Hill Decent Control
- Trailer Brake Controller
Specifications
Highlights
|
Electric
Engine Type
|
|
-
MPG
|
|
580 hp
Horsepower
|
|
5
Seating Capacity
|
Brakes
|
N/A
Drum - Rear (Yes or )
|
|
14 in
Rear Brake Rotor Diam x Thickness
|
|
14 in
Front Brake Rotor Diam x Thickness
|
|
Yes
Disc - Rear (Yes or )
|
|
Yes
Disc - Front (Yes or )
|
|
4-Wheel
Brake ABS System (Second Line)
|
|
4-Wheel
Brake ABS System
|
|
4-Wheel Disc
Brake Type
|
Electrical
|
N/A
Maximum Alternator Capacity (amps)
|
|
N/A
Cold Cranking Amps @ 0° F (Primary)
|
Engine
|
775
SAE Net Torque @ RPM
|
|
580
SAE Net Horsepower @ RPM
|
|
N/A
Displacement
|
|
Electric
Engine Type
|
|
1-Speed A/T
A/T Transmission Options
|
|
-
MPG
|
|
N/A
Total Cooling System Capacity
|
Measurements
|
5
Passenger Capacity
|
|
N/A
Ext'd Cab Cargo Volume
|
|
53 ft³
Cargo Volume
|
|
60 in
Tailgate Width
|
|
21 in
Cargo Box (Area) Height
|
|
51 in
Cargo Box Width @ Wheelhousings
|
|
65 in
Cargo Box Width @ Floor
|
|
65 in
Cargo Box Width @ Top, Rear
|
|
66 in
Cargo Box Length @ Floor
|
|
N/A
Ground Clearance, Rear
|
|
N/A
Ground Clearance, Front
|
|
N/A
Ground to Top of Load Floor
|
|
N/A
Cab to End of Frame
|
|
N/A
Overhang, Rear w/o bumper
|
|
38 in
Overhang, Front
|
|
77 in
Height, Overall
|
|
80 in
Width, Max w/o mirrors
|
|
232 in
Length, Overall
|
|
N/A
Length, Overall w/rear bumper
|
|
N/A
Length, Overall w/o rear bumper
|
|
145 in
Wheelbase
|
|
63 in
Second Hip Room
|
|
66 in
Second Shoulder Room
|
|
44 in
Second Leg Room
|
|
40 in
Second Head Room
|
|
63 in
Front Hip Room
|
|
67 in
Front Shoulder Room
|
|
44 in
Front Leg Room
|
|
41 in
Front Head Room
|
Safety
|
Standard
Stability Control
|
|
Standard
Blind Spot Monitor
|
|
Optional
Backup Camera
|
Steering
|
N/A
Turning Diameter - Wall to Wall
|
|
48 ft
Turning Diameter - Curb to Curb
|
|
N/A
Steering Ratio (:1), Overall
|
|
Rack-Pinion
Steering Type
|
Suspension
|
Independent
Axle Type - Rear
|
|
Independent
Axle Type - Front
|
|
Trailing Arm
Suspension Type - Rear
|
|
Double Wishbone
Suspension Type - Front
|
Tires & Wheels
|
N/A
Spare Wheel Material
|
|
Aluminum
Rear Wheel Material
|
|
Aluminum
Front Wheel Material
|
|
N/A
Spare Wheel Size
|
|
20 X 8.5 in
Rear Wheel Size
|
|
20 X 8.5 in
Front Wheel Size
|
|
N/A
Spare Tire Size
|
|
P275/60SR20
Rear Tire Size
|
|
P275/60SR20
Front Tire Size
|
Weight & Capacity
|
770 lbs
Wt Distributing Hitch - Max Tongue Wt.
|
|
7,700 lbs
Wt Distributing Hitch - Max Trailer Wt.
|
|
500 lbs
Dead Weight Hitch - Max Tongue Wt.
|
|
5,000 lbs
Dead Weight Hitch - Max Trailer Wt.
|
|
15,000 lbs
Gross Combined Wt Rating
|
|
1,657 lbs
Maximum Payload Capacity
|
|
1,657 lbs
As Spec'd Payload
|
|
6,893 lbs
As Spec'd Curb Weight
|
|
0 lbs
Option Weight - Rear
|
|
0 lbs
Option Weight - Front
|
|
3,432 lbs
Curb Weight - Rear
|
|
3,461 lbs
Curb Weight - Front
|
|
6,893 lbs
Base Curb Weight
|
|
8,550 lbs
Gross Vehicle Weight Rating
|
|
0 lbs
Total Option Weight
|
|
6,893 lbs
Curb Weight
|
|
8,850 lbs
Gross Axle Weight Rating
|
|
N/A
Aux Fuel Tank Capacity, Approx
|
|
N/A
Fuel Tank Capacity, Approx
|
|
7,700 lbs
Maximum Trailering Capacity
|
|
N/A
Fifth Wheel Hitch - Max Tongue Wt.
|
|
N/A
Fifth Wheel Hitch - Max Trailer Wt.
|
