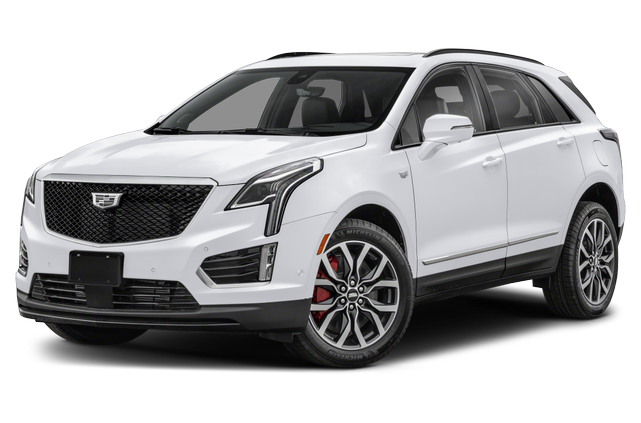

2025 Cadillac XT5 AWD Luxury specs & colors
Sport Utility
MSRP
- FWD 4dr Luxury
- $44,295
- AWD 4dr Luxury
- $46,295
- FWD 4dr Premium Luxury
- $50,595
- AWD 4dr Premium Luxury
- $52,595
- AWD 4dr Sport
- $57,195
Key specs
Color options
Interior
Jet Black w / Jet Black Accents
Packages
$0
Starting MSRP
- includes standard equipment
Specifications
Highlights
|
Turbocharged Gas I4
Engine Type
|
|
20 City / 23 Hwy
MPG
|
|
235 hp
Horsepower
|
|
5
Seating Capacity
|
Brakes
|
Yes
Disc - Rear (Yes or )
|
|
13.6 x -TBD- in
Front Brake Rotor Diam x Thickness
|
|
4-Wheel
Brake ABS System
|
|
12.4 x -TBD- in
Rear Brake Rotor Diam x Thickness
|
|
N/A
Brake ABS System (Second Line)
|
|
Yes
Disc - Front (Yes or )
|
|
Pwr
Brake Type
|
|
N/A
Drum - Rear (Yes or )
|
Electrical
|
170
Maximum Alternator Capacity (amps)
|
|
N/A
Cold Cranking Amps @ 0° F (Primary)
|
Engine
|
235 @ 5000
SAE Net Horsepower @ RPM
|
|
258 @ 1500-4000
SAE Net Torque @ RPM
|
|
2.0L/-TBD-
Displacement
|
|
Turbocharged Gas I4
Engine Type
|
|
9-Speed A/T
A/T Transmission Options
|
|
20 City / 23 Hwy
MPG
|
|
N/A
Total Cooling System Capacity
|
Measurements
|
40 in
Front Head Room
|
|
55 in
Second Hip Room
|
|
N/A
Cargo Box (Area) Height
|
|
105 ft³
Passenger Volume
|
|
N/A
Cargo Area Length @ Floor to Seat 3
|
|
30 ft³
Cargo Volume to Seat 2
|
|
N/A
Rear Door Opening Height
|
|
66 in
Height, Overall
|
|
N/A
Rear Door Opening Width
|
|
65 in
Track Width, Rear
|
|
39 in
Second Leg Room
|
|
5
Passenger Capacity
|
|
N/A
Cargo Volume to Seat 3
|
|
58 in
Front Shoulder Room
|
|
75 in
Width, Max w/o mirrors
|
|
N/A
Liftover Height
|
|
190 in
Length, Overall
|
|
41 in
Front Leg Room
|
|
N/A
Cargo Area Length @ Floor to Seat 1
|
|
63 ft³
Cargo Volume to Seat 1
|
|
N/A
Cargo Area Width @ Beltline
|
|
38 in
Second Head Room
|
|
N/A
Min Ground Clearance
|
|
112 in
Wheelbase
|
|
65 in
Track Width, Front
|
|
N/A
Cargo Area Length @ Floor to Seat 2
|
|
N/A
Cargo Box Width @ Wheelhousings
|
|
56 in
Front Hip Room
|
|
56 in
Second Shoulder Room
|
Safety
|
Standard
Navigation System
|
|
Standard
Lane Departure Warning
|
|
Standard
Backup Camera
|
Steering
|
Electric Rack & Pinion
Steering Type
|
|
N/A
Lock to Lock Turns (Steering)
|
|
39 ft
Turning Diameter - Curb to Curb
|
|
16
Steering Ratio (:1), Overall
|
|
N/A
Turning Diameter - Wall to Wall
|
Suspension
|
N/A
Suspension Type - Front (Cont.)
|
|
w/Coil Springs
Suspension Type - Rear (Cont.)
|
|
MacPherson Strut
Suspension Type - Front
|
|
Independent five-link
Suspension Type - Rear
|
Tires & Wheels
|
Compact
Spare Tire Size
|
|
P235/65R18
Front Tire Size
|
|
P235/65R18
Rear Tire Size
|
|
18 x -TBD- in
Rear Wheel Size
|
|
Aluminum
Front Wheel Material
|
|
Aluminum
Rear Wheel Material
|
|
18 x -TBD- in
Front Wheel Size
|
|
Steel
Spare Wheel Material
|
|
18 x -TBD- in
Spare Wheel Size
|
Weight & Capacity
|
4,127 lbs
Base Curb Weight
|
|
100 lbs
Dead Weight Hitch - Max Tongue Wt.
|
|
N/A
Curb Weight - Front
|
|
100 lbs
Wt Distributing Hitch - Max Tongue Wt.
|
|
N/A
Curb Weight - Rear
|
|
N/A
Maximum Payload Capacity
|
|
N/A
Curb Weight
|
|
N/A
Aux Fuel Tank Capacity, Approx
|
|
1,000 lbs
Dead Weight Hitch - Max Trailer Wt.
|
|
0 lbs
Total Option Weight
|
|
22 gal
Fuel Tank Capacity, Approx
|
|
1,000 lbs
Wt Distributing Hitch - Max Trailer Wt.
|
|
1,000 lbs
Maximum Trailering Capacity
|
Compare trims
Wondering which trim is right for you?
Our 2025 Cadillac XT5 trim comparison will help you decide.
