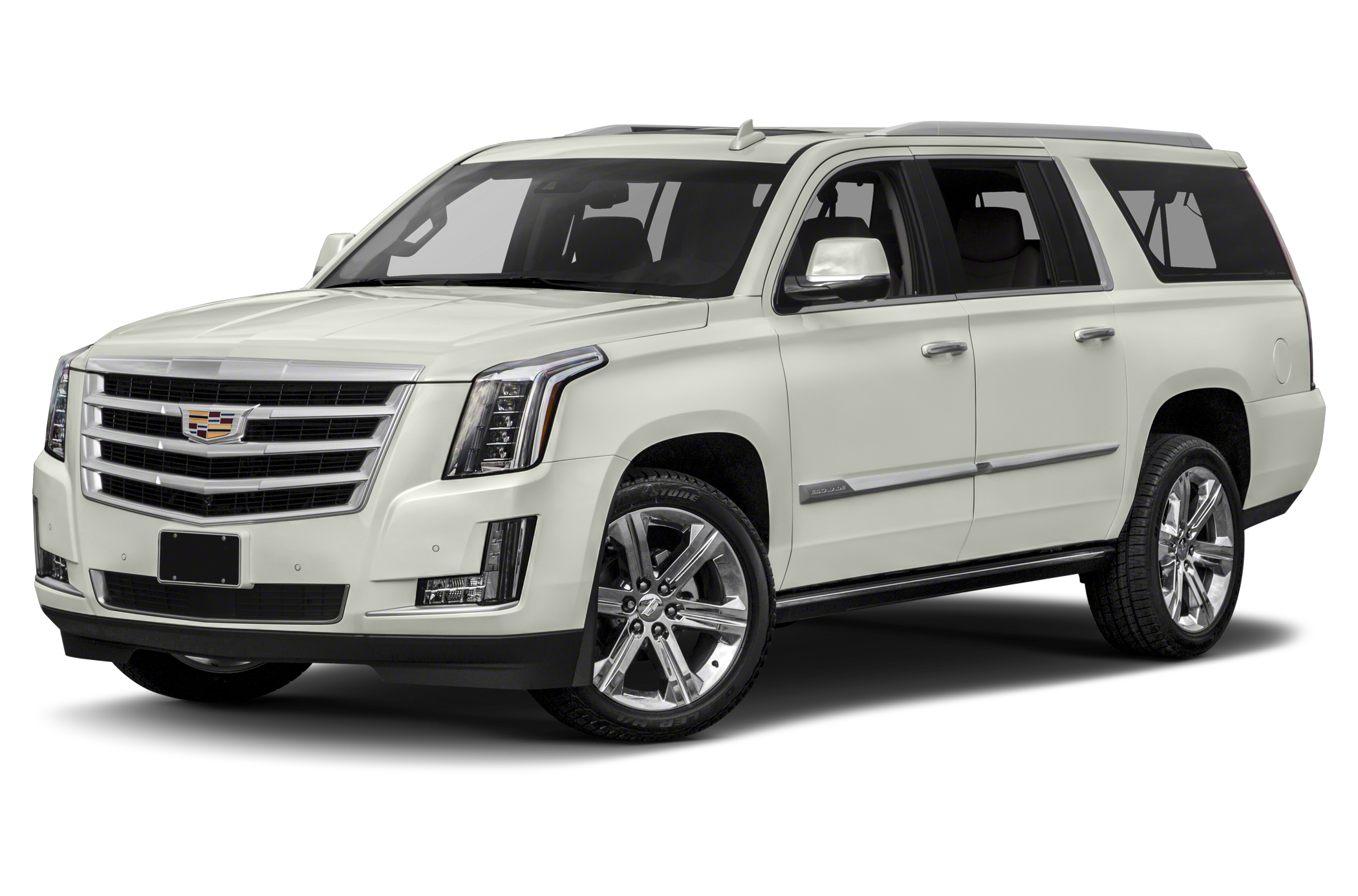

2016 Cadillac Escalade ESV Standard specs & colors
Sport Utility
MSRP
- 2WD 4dr Standard
- $75,970
- 4WD 4dr Standard
- $78,570
- 2WD 4dr Luxury Collection
- $80,045
- 4WD 4dr Luxury Collection
- $82,645
- 2WD 4dr Premium Collection
- $84,545
- 4WD 4dr Premium Collection
- $87,145
- 2WD 4dr Platinum
- $92,350
- 4WD 4dr Platinum
- $94,950
$75,970
Starting MSRP
Current listing price
Current listing price
Showing the 2016 Cadillac Escalade ESV 2WD 4dr Standard
Shop NowKey specs
Color options
Interior
Jet Black
Shale w / Cocoa Accents
Packages
$0
Starting MSRP
- Includes Standard Equipment
Specifications
Highlights
|
Gas V8
Engine Type
|
|
15 City / 22 Hwy
MPG
|
|
420 hp
Horsepower
|
|
8
Seating Capacity
|
Brakes
|
N/A
Brake ABS System (Second Line)
|
|
4-Wheel
Brake ABS System
|
|
13.6 x 0.8 in
Rear Brake Rotor Diam x Thickness
|
|
13.0 x 1.2 in
Front Brake Rotor Diam x Thickness
|
|
Pwr
Brake Type
|
|
Yes
Disc - Rear (Yes or )
|
|
Yes
Disc - Front (Yes or )
|
|
N/A
Drum - Rear (Yes or )
|
Electrical
|
600
Cold Cranking Amps @ 0° F (Primary)
|
|
160
Maximum Alternator Capacity (amps)
|
Engine
|
6.2L/376
Displacement
|
|
420 @ 5600
SAE Net Horsepower @ RPM
|
|
460 @ 4100
SAE Net Torque @ RPM
|
|
Gas V8
Engine Type
|
|
Transmission Overdrive Switch
8-Speed A/T A/T Transmission Options
|
|
15 City / 22 Hwy
MPG
|
|
16.7 qts
Total Cooling System Capacity
|
Entertainment
|
Standard
Bluetooth®
|
Measurements
|
N/A
Overhang, Front
|
|
N/A
Cargo Box Width @ Floor
|
|
N/A
Side Door Opening Height
|
|
N/A
Cargo Box Width @ Wheelhousings
|
|
N/A
Length, Overall
|
|
32 in
Ground to Top of Load Floor
|
|
81 in
Width, Max w/o mirrors
|
|
N/A
Cargo Area Length @ Floor to Seat 3
|
|
39 ft³
Cargo Volume to Seat 3
|
|
74 in
Height, Overall
|
|
N/A
Cargo Area Length @ Floor to Seat 1
|
|
N/A
Cargo Box Width @ Top, Rear
|
|
224 in
Length, Overall w/rear bumper
|
|
8 in
Ground Clearance, Rear
|
|
65 in
Front Shoulder Room
|
|
43 in
Front Head Room
|
|
39 in
Third Head Room
|
|
N/A
Cargo Volume
|
|
N/A
Cab to End of Frame
|
|
N/A
Side Door Opening Width
|
|
45 in
Front Leg Room
|
|
N/A
Cargo Volume to Seat 4
|
|
60 in
Second Hip Room
|
|
40 in
Second Leg Room
|
|
61 in
Front Hip Room
|
|
7
Passenger Capacity
|
|
77 ft³
Cargo Volume to Seat 2
|
|
8 in
Ground Clearance, Front
|
|
N/A
Cargo Box (Area) Height
|
|
N/A
Tailgate Width
|
|
N/A
Rear Door Opening Width
|
|
64 in
Second Shoulder Room
|
|
39 in
Second Head Room
|
|
130 in
Wheelbase
|
|
22 in
Step Up Height - Side
|
|
N/A
Step Up Height - Front
|
|
121 ft³
Cargo Volume to Seat 1
|
|
N/A
Cargo Area Width @ Beltline
|
|
N/A
Cargo Area Length @ Floor to Console
|
|
N/A
Ext'd Cab Cargo Volume
|
|
N/A
Rear Door Opening Height
|
|
35 in
Third Leg Room
|
|
N/A
Cargo Area Length @ Floor to Seat 2
|
|
63 in
Third Shoulder Room
|
|
N/A
Overhang, Rear w/o bumper
|
|
49 in
Third Hip Room
|
Safety
|
Standard
Navigation System
|
|
Standard
Stability Control
|
Steering
|
Pwr
Steering Type
|
|
43 ft
Turning Diameter - Curb to Curb
|
|
N/A
Steering Ratio (:1), Overall
|
|
N/A
Turning Diameter - Wall to Wall
|
Suspension
|
Solid axle w/five-link location
Axle Type - Rear
|
|
5-Link
Suspension Type - Rear
|
|
Independent
Suspension Type - Front
|
|
Independent
Axle Type - Front
|
Tires & Wheels
|
Aluminum
Front Wheel Material
|
|
20 x 9.0 in
Front Wheel Size
|
|
17 x -TBD- in
Spare Wheel Size
|
|
P275/55R20
Rear Tire Size
|
|
20 x 9.0 in
Rear Wheel Size
|
|
Aluminum
Rear Wheel Material
|
|
P275/55R20
Front Tire Size
|
|
Steel
Spare Wheel Material
|
|
P265/70R17
Spare Tire Size
|
Weight & Capacity
|
2,840 lbs
Curb Weight - Rear
|
|
2,955 lbs
Curb Weight - Front
|
|
8,100 lbs
Wt Distributing Hitch - Max Trailer Wt.
|
|
38,100 lbs
Gross Axle Weight Rating
|
|
810 lbs
Wt Distributing Hitch - Max Tongue Wt.
|
|
0 lbs
Total Option Weight
|
|
N/A
Fifth Wheel Hitch - Max Trailer Wt.
|
|
N/A
Aux Fuel Tank Capacity, Approx
|
|
1,505 lbs
As Spec'd Payload
|
|
N/A
Maximum Trailering Capacity
|
|
5,795 lbs
As Spec'd Curb Weight
|
|
1,505 lbs
Maximum Payload Capacity
|
|
N/A
Fifth Wheel Hitch - Max Tongue Wt.
|
|
0 lbs
Option Weight - Rear
|
|
31 gal
Fuel Tank Capacity, Approx
|
|
N/A
Base Curb Weight
|
|
5,000 lbs
Dead Weight Hitch - Max Trailer Wt.
|
|
0 lbs
Option Weight - Front
|
|
7,300 lbs
Gross Vehicle Weight Rating
|
|
5,795 lbs
Curb Weight
|
|
14,000 lbs
Gross Combined Wt Rating
|
|
500 lbs
Dead Weight Hitch - Max Tongue Wt.
|
